Repair of a Yaskawa XtraDrive XD-02-MSDL the Precision through systematic analysis.

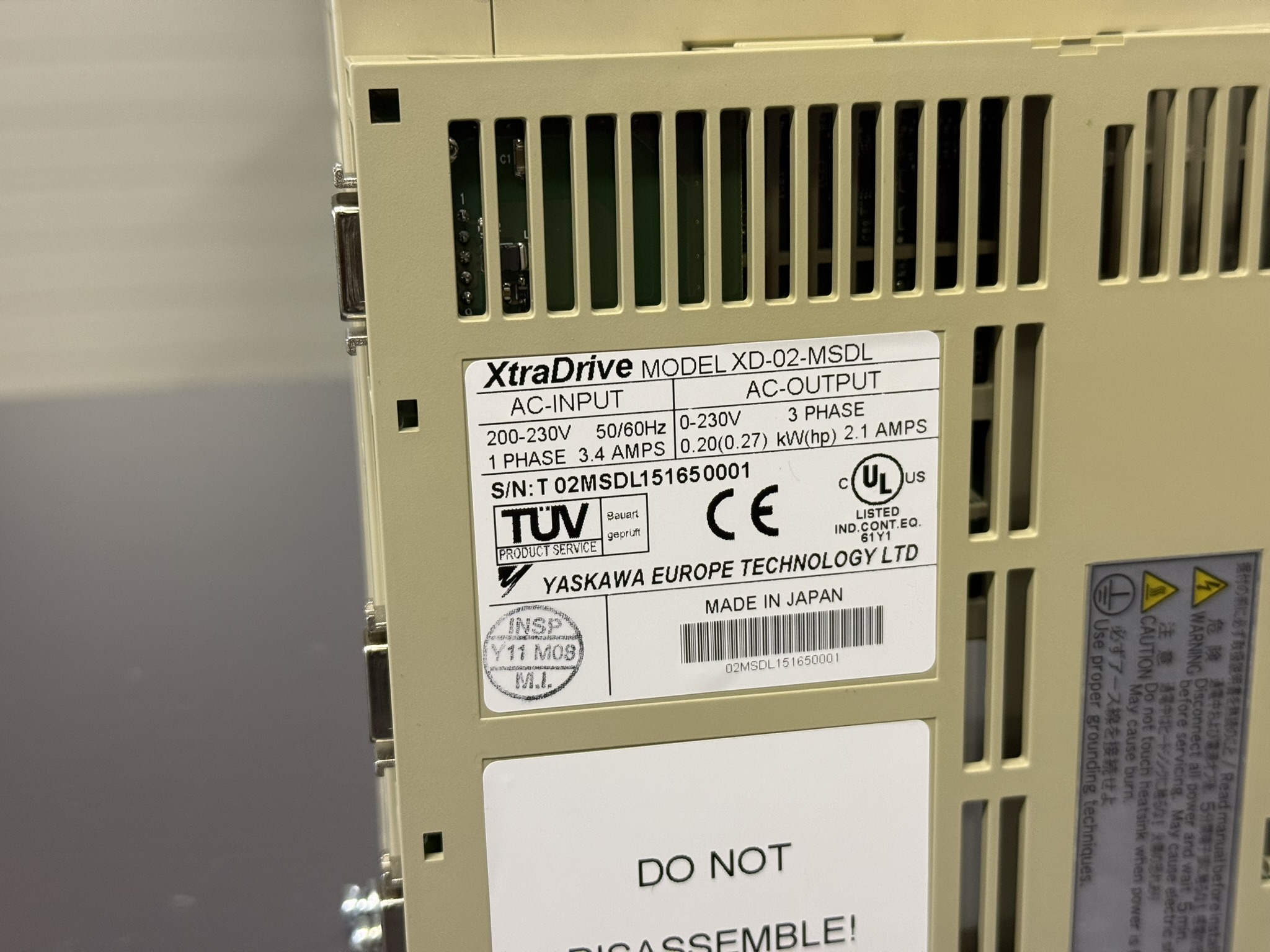

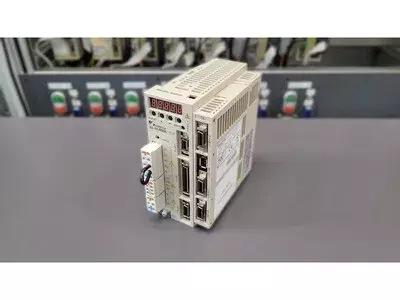

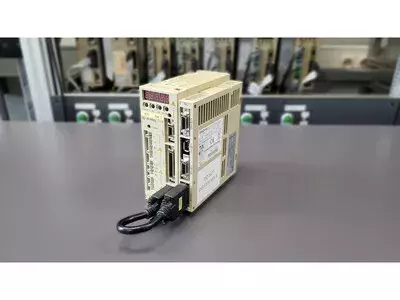

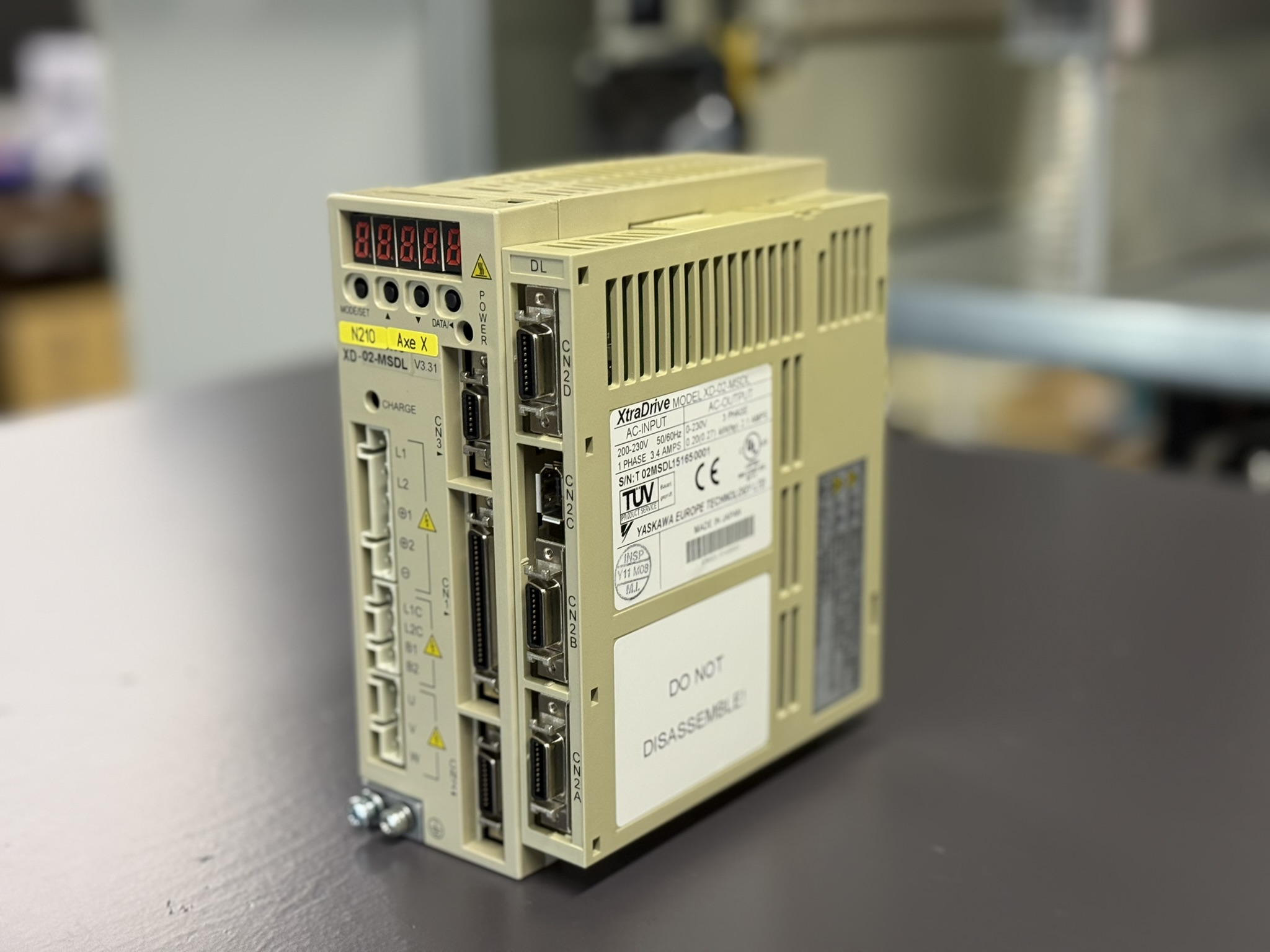

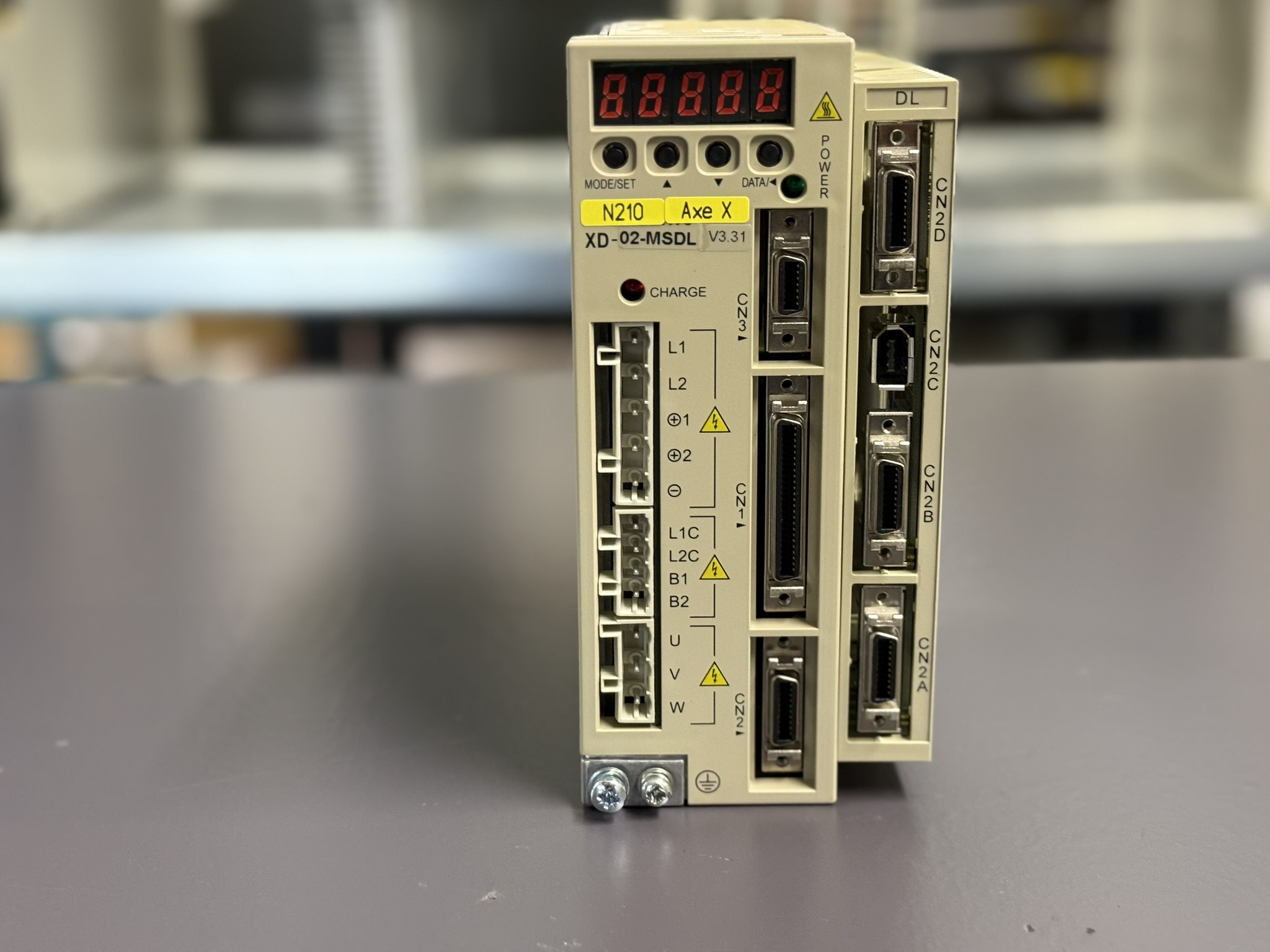

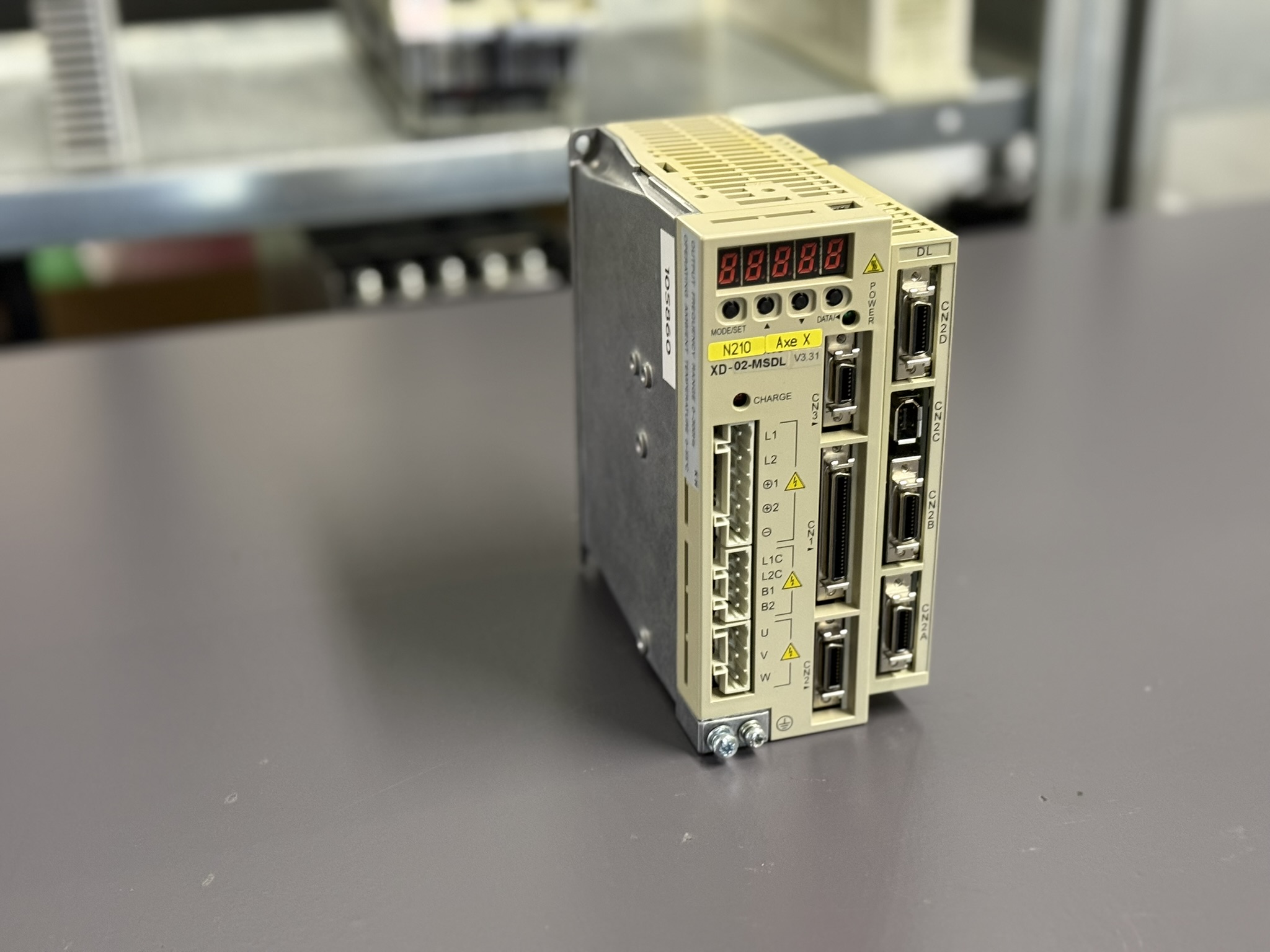

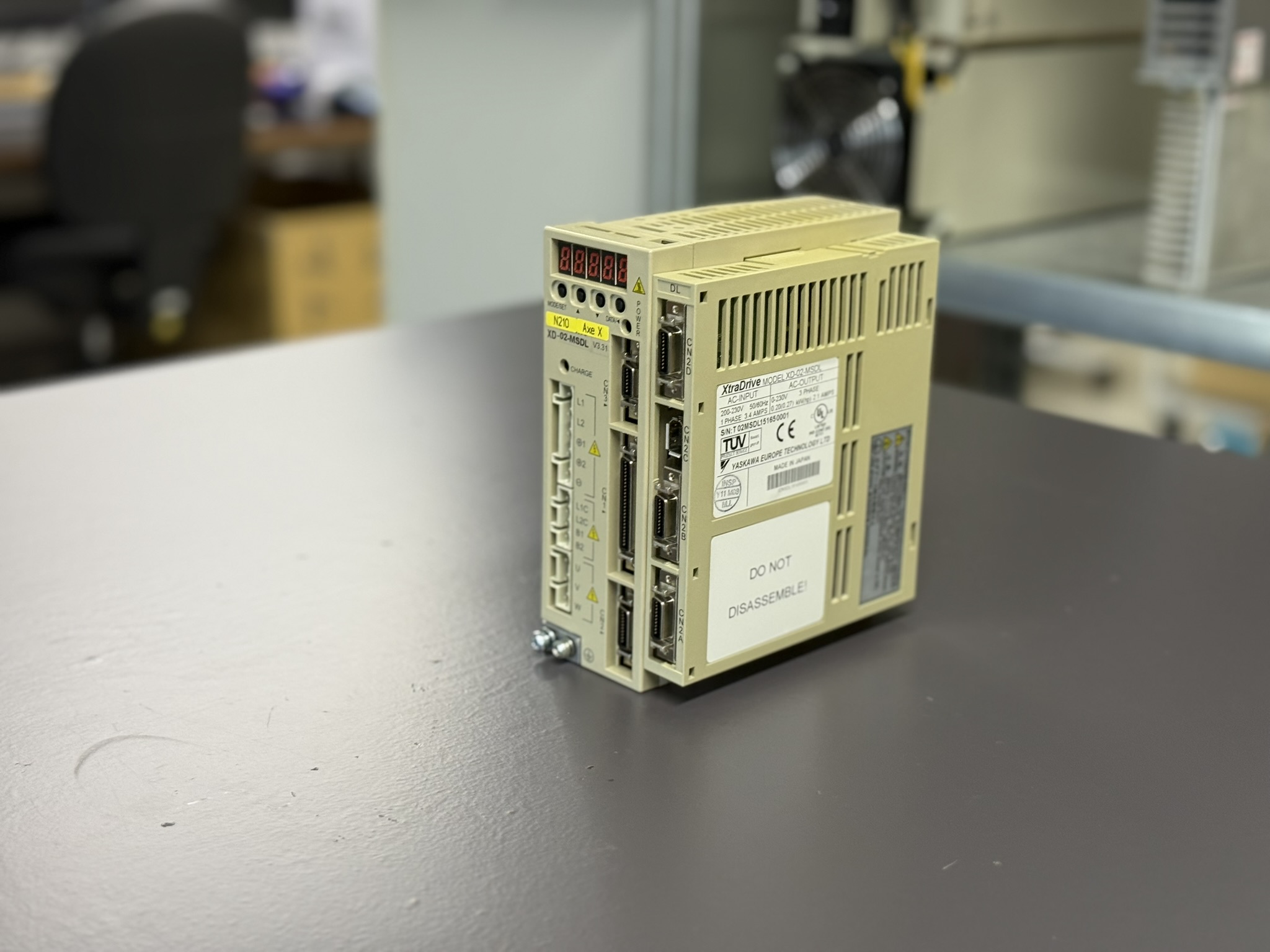

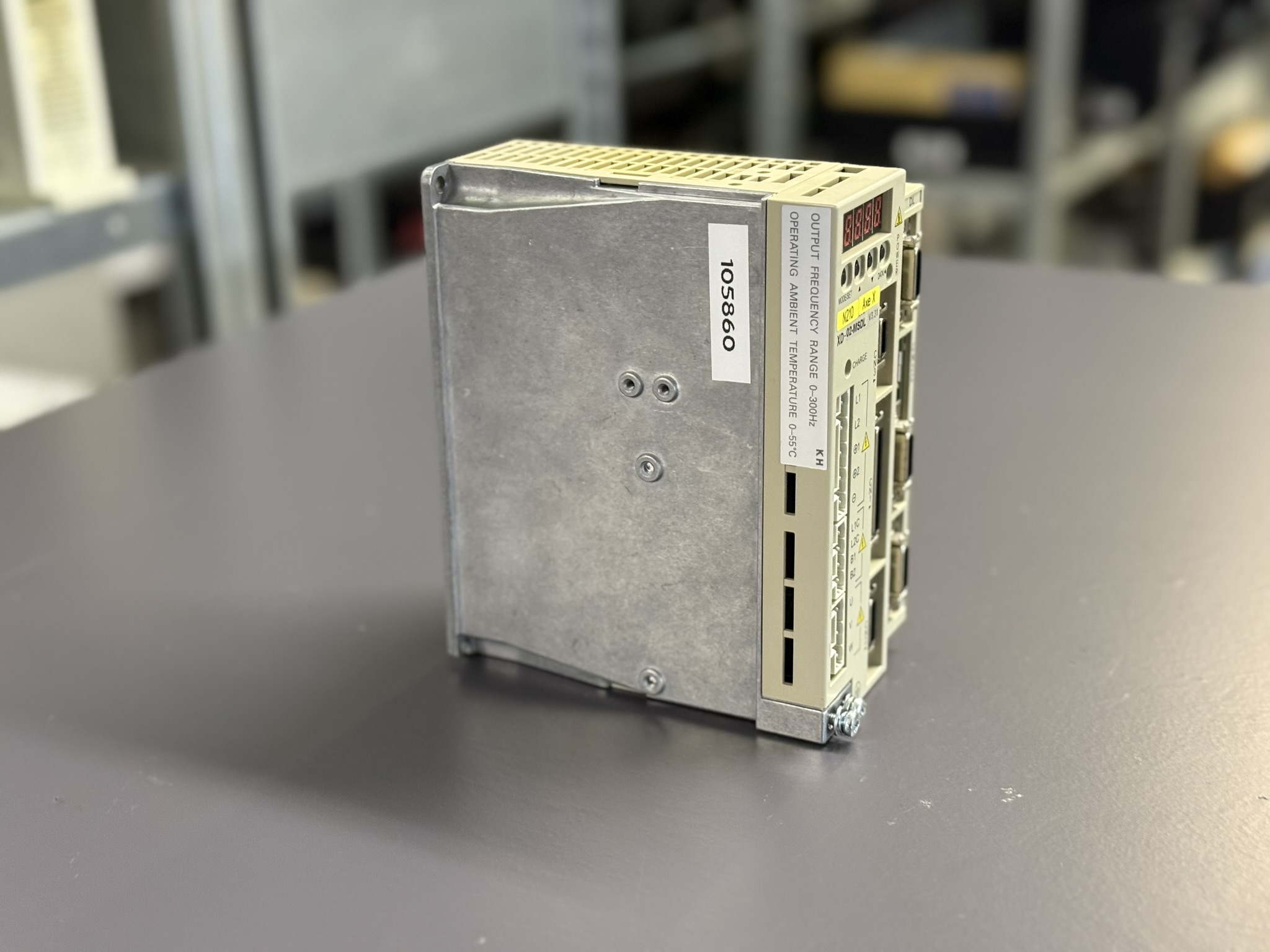

The Yaskawa XtraDrive XD-02-MSDL is one of the less common models within the XtraDrive series. Its distinctive design allows flexible use for both standard rotary servo systems and linear motor applications. In addition, its advanced communication interface enables precise synchronization in complex multi-axis setups. However, this versatility also makes the unit more sensitive to power and signal irregularities.

The device arrived in our workshop with a peculiar symptom: the connected motor was constantly hunting and oscillating, especially at low speed. Initially, it appeared to be a defective encoder, as this kind of behavior often points to faulty or distorted feedback signals. However, after testing several motors, the same jittering appeared each time. It was soon evident that the motor was not the root cause.

Diagnostic process

The diagnostic work started with a structured measurement routine. Using an oscilloscope, we examined the servo output and encoder signal lines. The feedback signals showed irregularities and slight phase shifts. This led us to suspect a problem within the encoder power and signal conditioning section of the control electronics.

To verify, the control and power boards were separated, cleaned, and cross-tested with a reference unit. The issue persisted. Only after replacing the internal power supply we discovered the real cause: unstable internal voltage had gradually damaged the encoder interface circuitry. This is a rare type of failure, since internal power supplies usually either fail completely or remain stable. In this case, however, intermittent voltage peaks were slowly degrading sensitive logic components over time.

Repair and preventive action

The damaged circuitry was carefully analyzed under a microscope. Affected signal paths were restored and critical components in the power and encoder supply lines replaced. Once the internal voltages stabilized, all encoder channels were re-measured for signal purity and phase accuracy.

Following repair, the XtraDrive was tested with several different servo motors. Each combination was observed across multiple speed ranges. Encoder waveforms were recorded using differential monitoring equipment to detect even minimal asymmetries. All tests confirmed clean, stable operation.

As part of our preventive maintenance approach, all ageing components such as electrolytic capacitors, fans, and connectors were replaced. This ensures long-term reliability and minimizes future breakdown risks.

System characteristics

What makes the XtraDrive XD-02-MSDL unique compared to other Yaskawa servo drives is its hybrid capability: it can operate both rotary and linear servo systems while offering extended network connectivity. Furthermore, its fine-tuning parameters (e.g. Pn100 for speed loop gain, Pn101 for integration constant) allow precise adjustment to each mechanical system.

This flexibility often leads to misconfigurations when used as a retrofit for older Yaskawa systems such as SGDA or SGDH. If parameter alignment is not exact, it can cause unstable control behavior especially when coupled with unstable supply voltage, as in this case.

Testing and quality assurance

After full reassembly, the unit underwent an extensive quality assurance program, including long-term thermal load testing and repeated activation of all protection circuits (A.02–A.C9 according to the manual)

The device passed all functional and endurance tests without issues.

The repaired Servopack was returned to the customer together with a detailed measurement report and maintenance recommendation.

Conclusion

This case clearly demonstrates how crucial structured diagnostics and preventive restoration are when working with advanced servo systems. A hidden defect in the internal power supply gradually destroyed the encoder control stage, causing intermittent malfunctions that could easily be mistaken for external issues.

Thanks to a disciplined repair approach, professional test stands, and preventive component renewal, the Yaskawa XtraDrive XD-02-MSDL was fully restored to stable, reliable performance, ready for continued industrial operation.

At industrypart GmbH, we handle such complex cases routinely, also on behalf of international machine manufacturers. Our focus remains on sustainable repair, verified quality, and operational safety, for every unit, standard or special.
