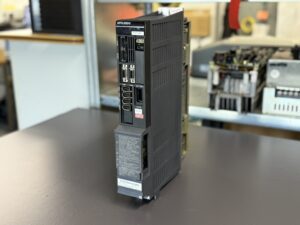

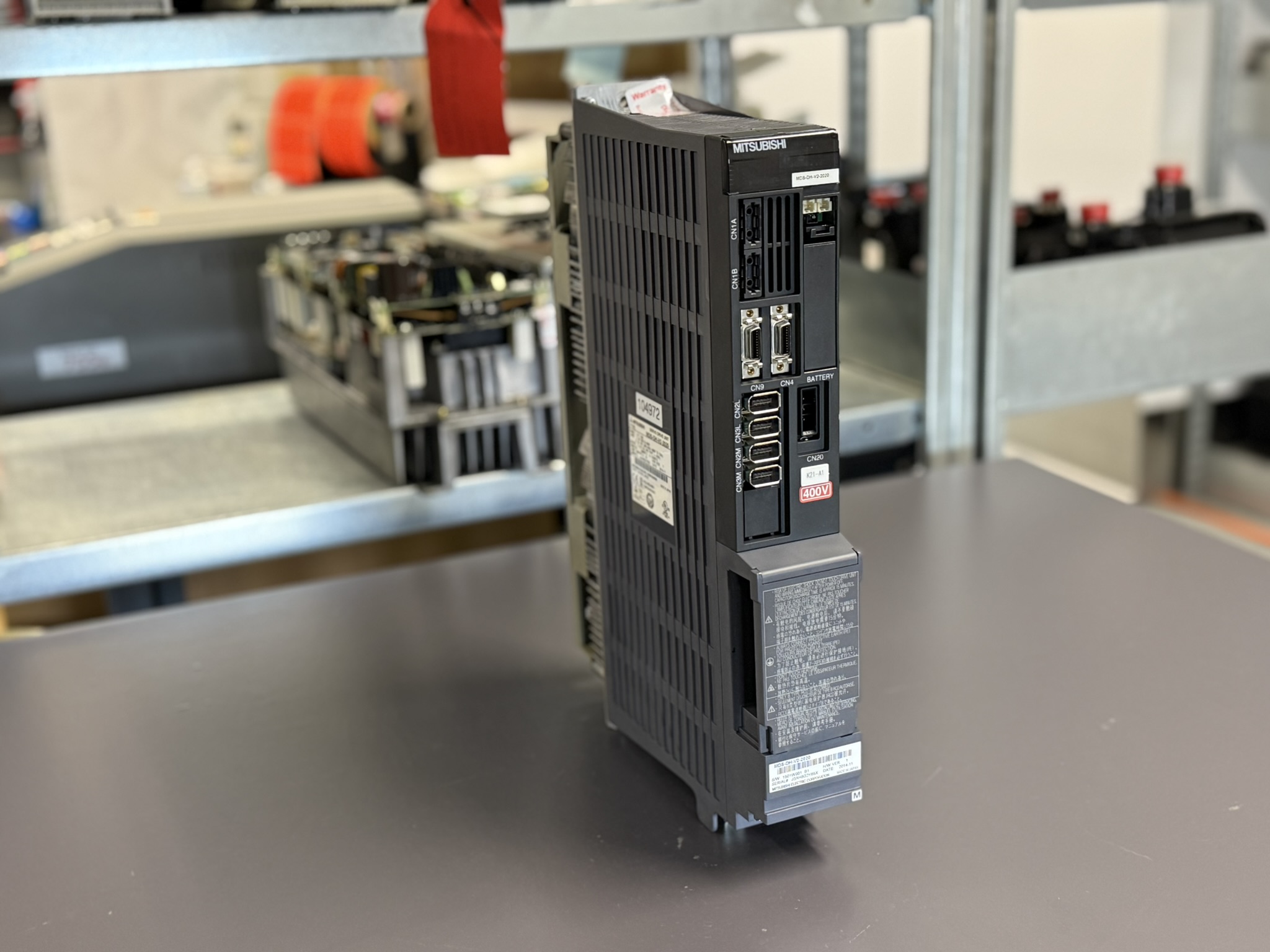

Mitsubishi Servo Drive Unit MDS-DH-V2-2020 Hauptansicht
26.06.2025 by Viktor Siebert
Repair Process at Industrypart GmbH Mitsubishi Servo Drive MDS-DH-V2-2020

From Incoming Inspection to Final Commissioning – Using a Mitsubishi MDS-DH-V2-2020 Servo Drive as an Example.

A customer from the manufacturing sector contacted us with a simple but important question:
“Before I send in the device – can you explain exactly how your repair process works?”
He was referring to a Mitsubishi Servo Drive, type MDS-DH-V2-2020, which suddenly showed no function at all – no display, no response, no status LED.

In this post, we explain step by step how our professional repair process works – transparent, systematic, and documented.

1. Incoming Inspection & Registration

As soon as the device arrives at our facility, it is scanned, labeled with a QR code, and registered in our internal system.
We inspect the packaging for damage and document any visible issues with photographs. Even if no documents are included, we identify the device based on the nameplate.

Example:
The MDS-DH-V2-2020 arrived without a delivery note, but the nameplate was legible. Packaging was intact, and no external damage was observed.

2. Visual Inspection & Initial Assessment

Our technicians begin with a detailed visual check:

  • Are there signs of burning or heat damage?
  • Are capacitors bulging or leaking?
  • Are there cold solder joints or corrosion?

In the case of the MDS-DH-V2-2020:
During this step, we noticed a blown fuse in the internal power supply – a common sign of a short circuit in the intermediate circuit or power stage.

3. Electrical Diagnosis and Module Testing

Next, we conduct a comprehensive electrical diagnosis:

  • Measuring the input and output voltages
  • Checking gate drivers and IGBT bridges
  • Analyzing the communication interface
  • Simulating machine-like load conditions

We use manufacturer-specific testing setups, allowing us to test the unit even without the complete machine.

For the MDS-DH-V2-2020:
The internal power supply had completely failed – no 5V/15V output, no switching function. A defective driver IC was also identified.

4. Repair: Replacement & Restoration

Our technicians replace all faulty components using only high-quality or original parts. For safety-critical elements such as gate drivers, relays, or optocouplers, we prioritize OEM components.

For the MDS-DH-V2-2020:

  • Replacement of several power semiconductors
  • Repair of switching regulators
  • New startup capacitors and driver ICs
  • Reinforcement of high-load solder joints to extend lifespan

5. Functional & Load Testing

Once the repair is completed, the unit undergoes several rigorous testing stages:

  • Cold start test (current draw, voltage levels)
  • Machine simulation with test axes
  • Long-term stress testing with varying load cycles
  • Thermal analysis

In the case of the MDS-DH-V2-2020:
We simulated real-world CNC machine behavior using test motors and motion profiles. The device passed all stress tests without any anomalies.

6. Documentation & Quality Control

Before shipping, each repair is thoroughly documented:

  • Fault description
  • Actions taken
  • Components replaced
  • Test results

All records are archived digitally. A test report can be provided upon request.

7. Packaging & Return Shipping

The device is securely packaged using ESD protection and padded industrial cartons. Upon request, the customer receives a repair summary and test protocol.
We also offer express shipping and advance replacement services when available.

The MDS-DH-V2-2020 was returned with a complete report and passed tests within 5 working days.

Conclusion: Why Our Process Delivers Results

Repairs at Industrypart GmbH are not guesswork, but follow a precise and proven structure.
Especially for complex devices like the Mitsubishi MDS-DH-V2-2020, experience and component-level expertise are critical – especially when dealing with sensitive power supply and driver sections.

Our customer was not only satisfied with the end result but also appreciated the transparency and communication throughout the process.

To mentioned Mitsubishi Drive: Mitsubishi Servo Drive MDS-DH-V2-2020

More details about our Mitsubishi repair services can be found here:
Mitsubishi drive Repair by Industrypart

📞 Feel free to contact us with any questions about your Mitsubishi drive technology.
Our expert team is happy to help!

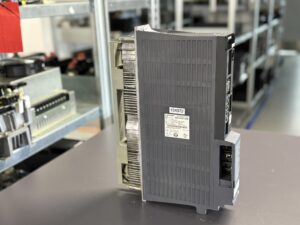

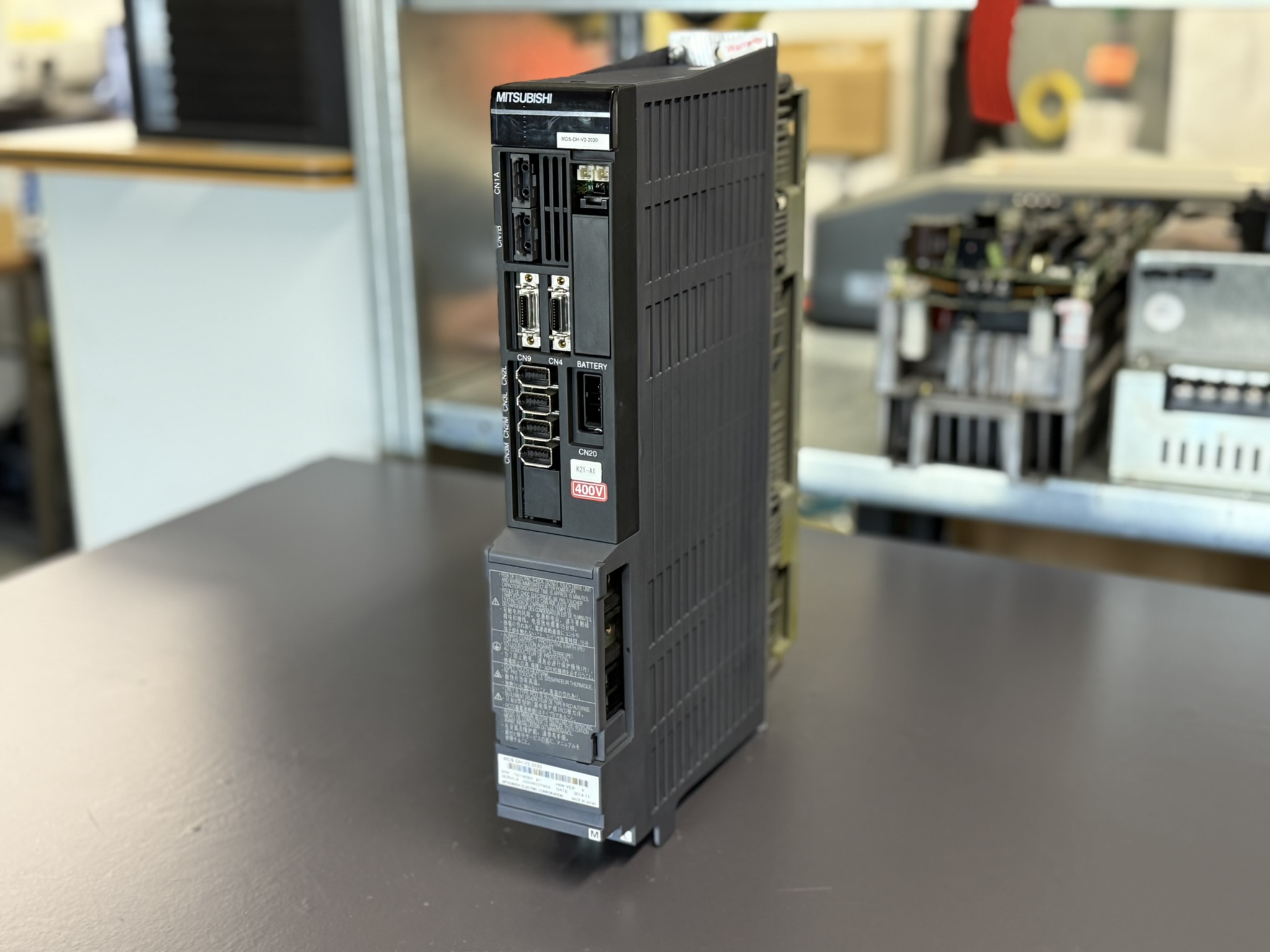

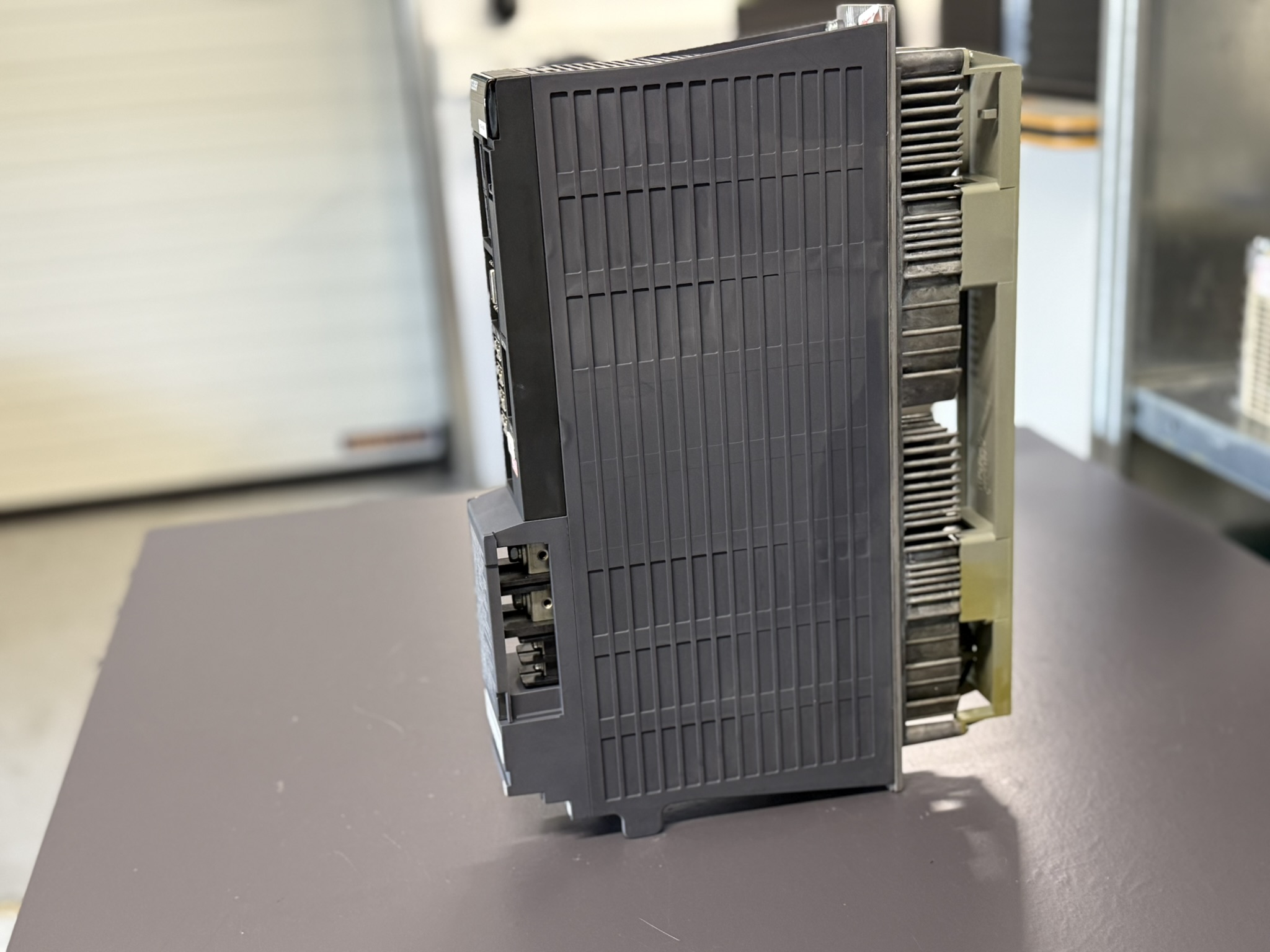

Device Description and Technical Data

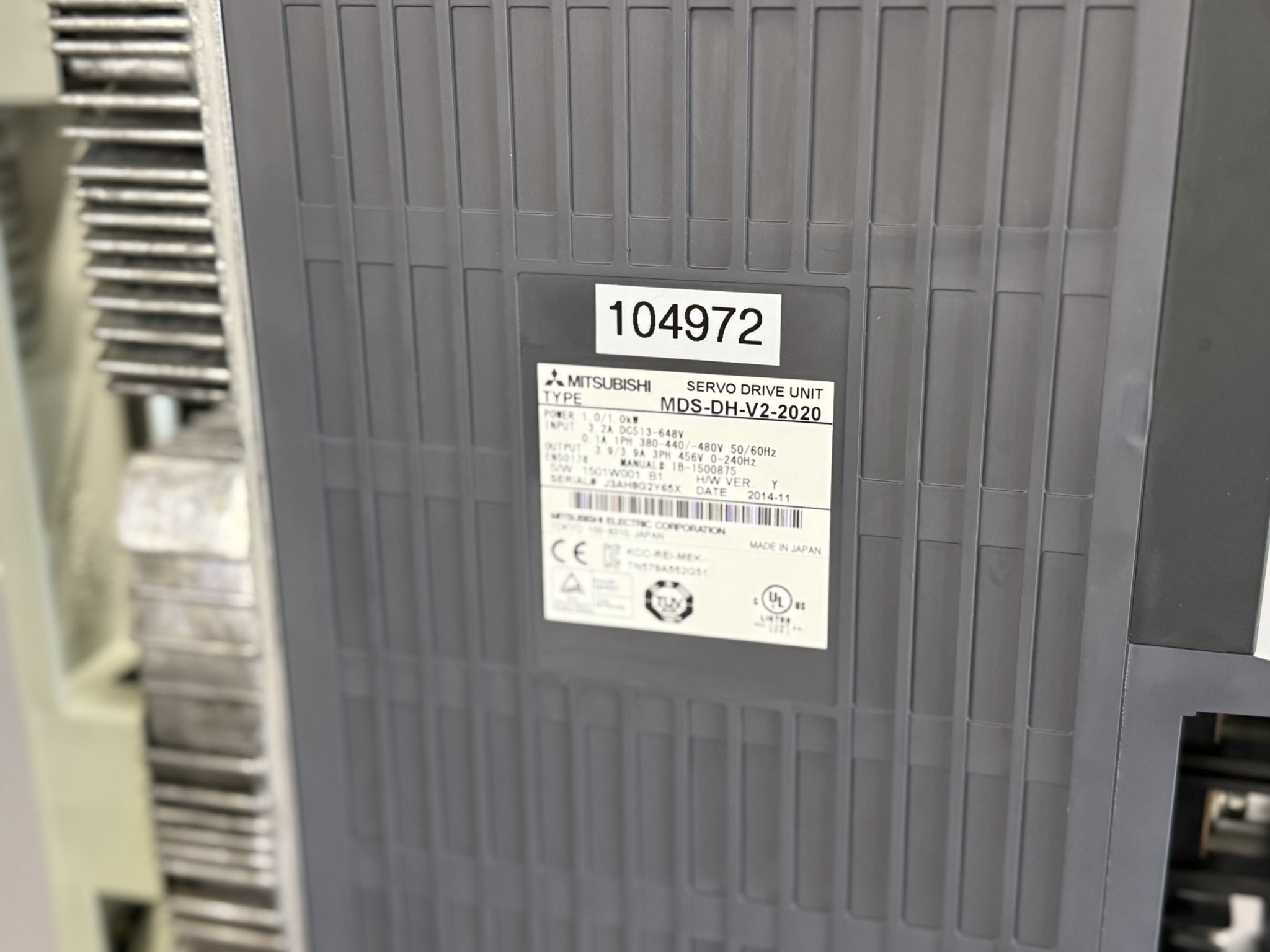

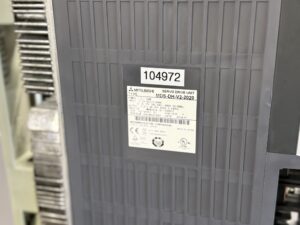

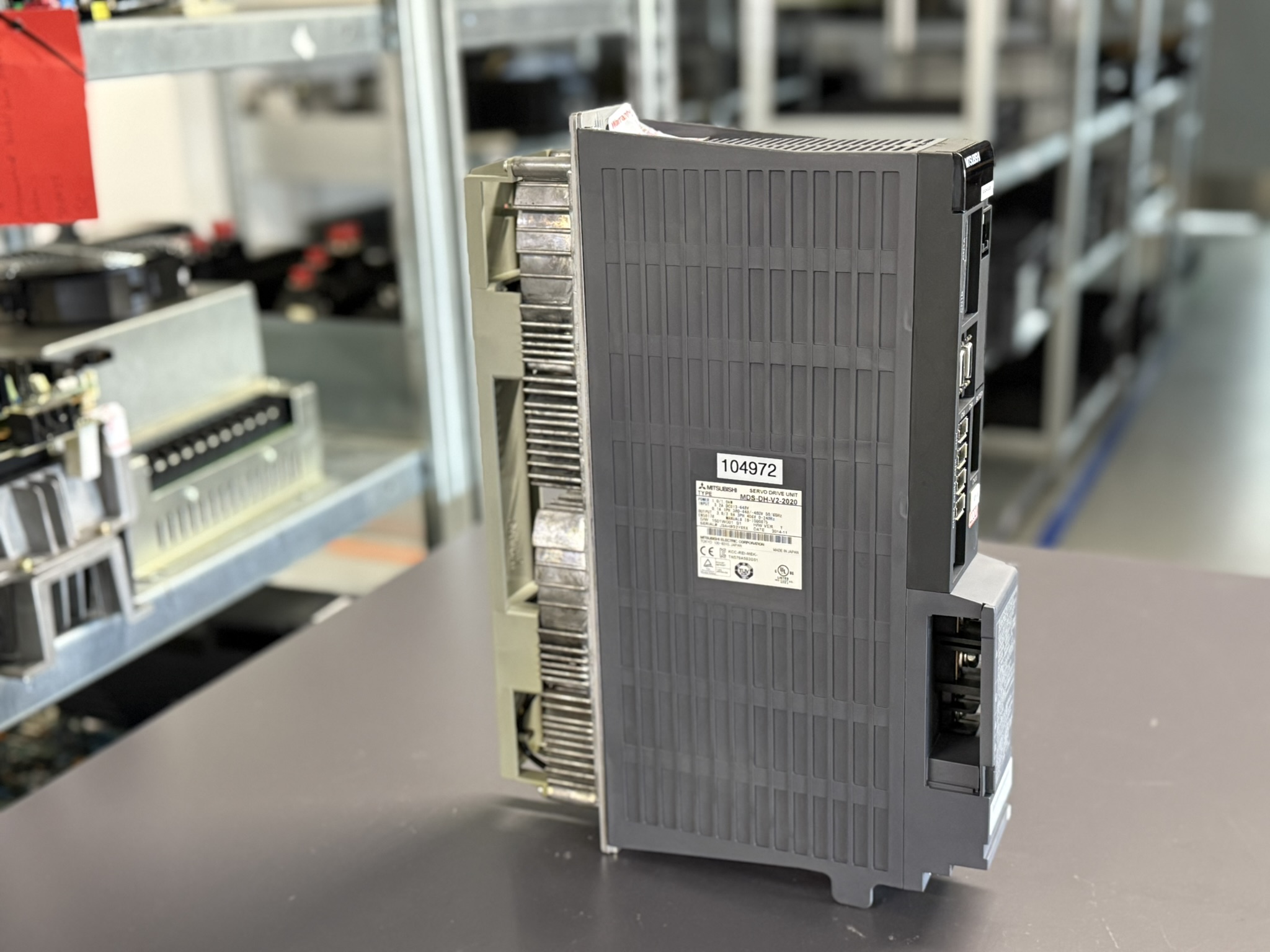

Device Data (based on nameplate and manual)

ParameterValue
ModelMDS-DH-V2-2020
DC Input3.2 A, DC 513–648 V
AC Input0.1 A, single-phase, 380–440 V or 480 V, 50/60 Hz
Output3.9 A / 3.9 A, 3-phase, 456 V, 0–240 Hz
Rated Power1.0 / 1.0 kW
Manual No.IB-15000875
Serial NumberJ3AH8G2Y65X
Software Version1501W001 B1
Hardware VersionY
Production Date2014-11
ManufacturerMitsubishi Electric Corporation, Tokyo 100-8310, Japan
CertificationsCE, TÜV, KCC, UL, TÜV SÜD, Type Approved, Safety Tested

Internal Components

Component TypeMarkings on PCBQty
Control BoardRM115A-22 or BC886A028G511
Power BoardRM162A-V2 or BC638A394G51CRM162C-V2 or BC886A010G52B/F1
Power Stage (IGBT Unit)BKO-NC1207 H84 or A2-DH-V2-20201

Typical Environment & Application

  • Installed in: CNC machining centers (lathe, milling, drilling machines)
  • Works with: Mitsubishi CNC control systems (M70, M700, M800 series)
  • Motor types: AC servo and spindle motors (e.g. HF-KP, HF-SP, SJ-VL series)
  • Installation site: Industrial control cabinets with temperature regulation
  • Function: Provides regulated output to drive motors, manages encoder signals, ensures overcurrent/temperature protection

Alarms & Troubleshooting Table (excerpt)

Alarm CodeDescriptionReset TypeRecommended Action
10Insufficient bus voltagePRCheck DC supply, external contactor, input voltage
17A/D converter error (feedback issue)PRReplace drive or check ambient conditions
21No signal from sub-side detector (encoder)PRInspect encoder cable and settings
25Absolute position data lostARReinitialize zero point
31OverspeedPRReview load, gear ratio, or parameter settings
32Power module overcurrentPRCheck for shorts in motor or cabling
45Fan failure → thermal shutdownPRReplace fan and inspect heat sink
71Instantaneous power interruptionNRCheck incoming AC quality, UPS, power supply

Power Supply Alarms (selected)

LED DisplayAlarm DescriptionReset MethodAction
61Power module overcurrent in PSUPRReduce motor load, check power components
67Phase loss detectedPRVerify phase wiring, power balance
73Over-regenerationNRLet unit cool down (15 mins), check regen resistor
75Overvoltage in DC busNRWait 5+ minutes before reset, review AC supply stability
